Horizontal Crystallization Crystal salt filtration Double-stage Pusher Centrifuge

Horizontal Crystallization Crystal salt filtration Double-stage Pusher Centrifuge is the separation factor of the double-stage piston pusher and continuously operated filter centrifuge can be adjusted by the speed. The speed is determined by different materials. It can continuously complete all the operation procedures such as feeding, separation washing, drying and unloading at full speed. As one of pharmaceutical equipment for sale, this salt centrifuge has the characteristics of continuous operation, stable operation, high separation factor, large production capacity, high output, good washing effect, low moisture content of filter cake, and low solid content of mother liquor. It is suitable for separating suspensions with solid phase particles greater than 0.05mm and concentration greater than 40%. It is suitable for chemical, fertilizer, alkali, salt and other industries.

Advantages of Horizontal Crystallization Crystal salt filtration Double-stage Pusher Centrifuge

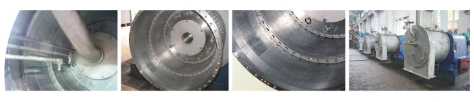

horizontal-crystallization-crystal-salt-filtration-double-stage-pusher-centrifuge.jpg


As one of trusted and leading pharma equipment company, Sinotech's Horizontal Crystallization Crystal salt filtration Double-stage Pusher Centrifuge has the following advantages:


  • Large Capacity


  • High processing precision for parts


  • Easy to operate and maintain


  • Long lifetime


  • Efficient separation and good separation effect


  • Adaptable


  • Easy to operate


  • Easy maintenance


  • Wide range of applications.

Outstand Features of Horizontal Crystallization Crystal salt filtration Double-stage Pusher Centrifuge


Control

Large Capacity,

High rotating speed,

high stability,

high fabrication precision, high quality stainless steel material,

long lifetime for working.


Specifications of Horizontal Crystallization Crystal salt filtration Double-stage Pusher Centrifuge


Model

HR400-NA

HR500-NA

HR630-NA

HR800-NA

HRZ1000-NA

Inner diameter of basket (mm)

400

500

630

800

1000

Filtering length of basket (mm)

320

360

480

600

720

Drum speed (r/min)

1400-2300

1200-2000

1000-1800

800-1600

850-950

G Force

440-1180

400-1120

350-1140

290-1150

405-505

Pushing strokes (mm)

40

50

50

50

70

Pushing times (min)

30-80

50-75

30-80

30-80

60-75

Main motor type (Kw)

7.5-15

30-55

45-75

55-90

90-110

Oil pump motor power (Kw)

5.5

22

30

45

55

Throughput (T/h) (at optimum condition)

3-4

2-2.5

12-18

More than 25

More than 40

More than 35

Net weight (Kg)

1945

3590

3950

6000

11500

Overall Dimension L*W*H (mm)

2534*1290*1155

3590*1430*1642

3115*1500*1360

3650*1880*1610

5250*2670*1940
