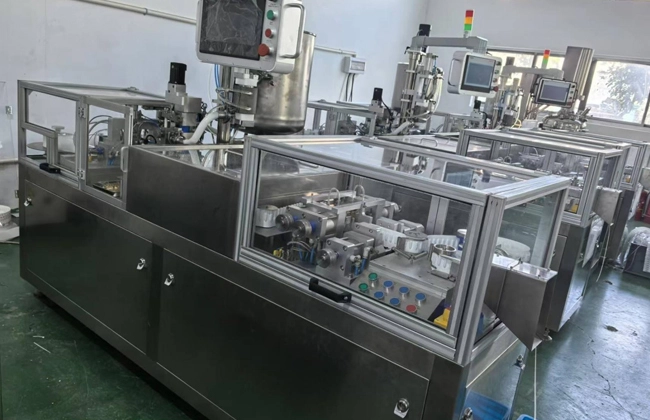

SINOTECH-LS High configuration Fully Automatic Suppository Production Line is suitable for the production of special shape such as bullet head, torpedo shape and duck bill, to meet the production of your suppository. (according to the specifications of your specifications)
| Commodity | Automatic suppository production line | Model | SINOTECH-1LS |
| Output | 1500 pcs/h | single dosage | 0.5—3.5ml |
| Dosage allowed | ＜±2% | Packaging Film | PVCPE (thickness0.15-0.18mm) |
| Stirring tank capacity | 20L | Air pressure | ≥0.6Mpa |
| Air consumption/min | 1.2m3/min | Water consumption/h | 50kg (recycling) |
| Working voltage | 3 phase 380V | total power | 4KW |
| Adopt forming shapes | Bullet, torpedo and duck shapes and other shapes | Machine Weight | 650KG |
| Adapt Material | Synthetic fatty acid glycerol, glycerin gelatin, polyethylene glycol etc | Each distance of suppository | 17.4mm |
| Overall dimensions | L2,547mm×W969mm×H1,819mm | ||
The injection pump body is processed by special process, so that the sealing performance between the piston and the pump body is better, and the infusion volume is more accurate. The dosages can be fine-tuned.
Make the both of triangle and the dotted line knives completely coincide, make the bolted shell achieve the easy tear effect.
The equipment filling pump has high precision, good sealing effect, smooth inner wall and good stability, so as to achieve the long-term operation without hanging wall phenomenon.
Because of the different viscosity of the drug matrix, the mixing effect cannot be fixed and the drug can be mixed before the filling, which can affect the drug content of the finished product.
The cooling system adopts the latest grading cooling technology, which can be cooled and solved the phenomenon of the edge of cooled material drops and fracture when the medicine is tearing apart.
The on-line monitoring function of PLC can be used to detect and alarm the fault self-check.
Note: by filling parts molding shell before if not including the equipment because of trace drug when filling in the flowing area close to the bolt shell under the action of electrostatic force along the shell wall climbing a short level which could reach the sealing parts of the bolt, thus will affect the back of the sealing quality.
The equipment has high precision and good stability, so it can run without wall for a long time.
Control station height reasonable design, machine operation is simple.
