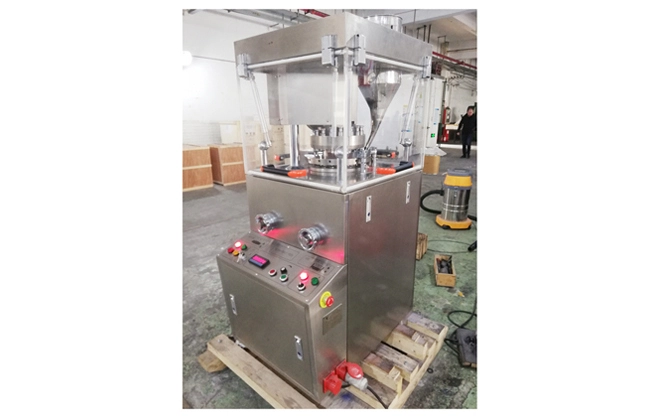

This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Model | ZPW-17D |
Dies (sets) | 17 |
Max. Pressure (kn) | 60 |
Max. dia. of tablet (mm) | 20 |
Max. Depth of fill (mm) | 15 |
Max. Thickness of largest table (mm) | 6 |
Production capacity (pcs/h) | 35700 |
Turret speed (r/min) | 35 |
Motor power (kw) | 3960, 380V/50 |
Overall size (mm) | 615 x 890 x 1,415 |
Weight (kg) | 700 |
1. The outside part of the machine is fully-enclosed, and it is made of stainless steel, meeting the G.M.P requirement
2. It has transparent windows so that press condition can be observed clearly and the Windows can be opened. Cleaning and maintenance is easier.
3. The machine can press not only round tablets but also different geometrical shape tablets, double-layer and annular tablets, and the tablets may have the impressed letters on both sides.
4. All the controller and devices are located in one side of the machine, so that it can be easier to operate
5. An overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs.
6. The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution.
