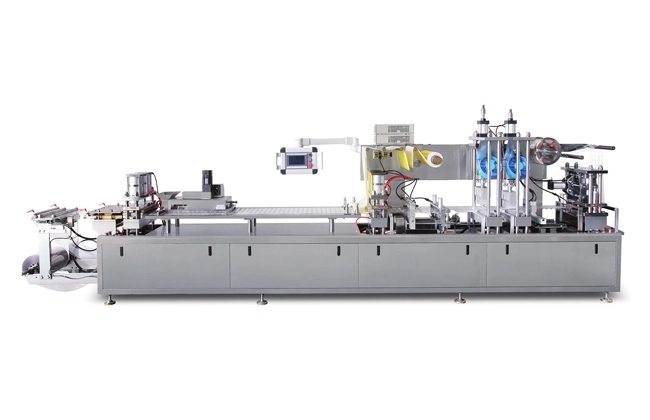

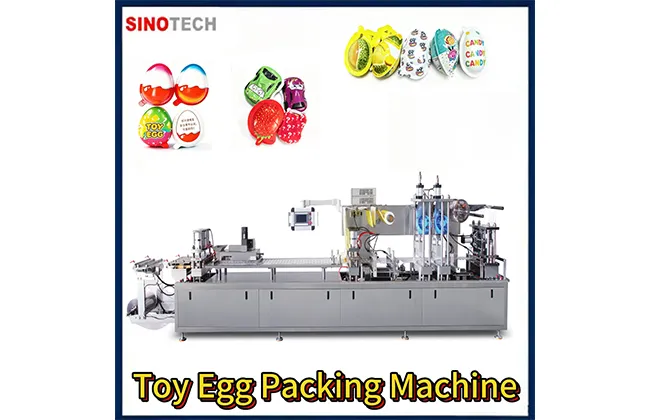

This product is a new packing machine designed by our company; it has reached domestic leading level. It is suitable for surprise egg packing machine. This machine adopts micro-computer PLC, frequency converter, touch panel operation, high automation; it is an ideal surprise egg blister packing equipment. The product passed the provincial science and technology appraisal.
1. With PLC control, touch screen operation, main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.
2. The travel range can be set in touch screen and the mould with locating slot, it is easy to change the mould and set the travel range, can greatly save the material waste.
3. With servo motor traction and eye marking system, the machine running is more stable and convenient to set the eye marks.

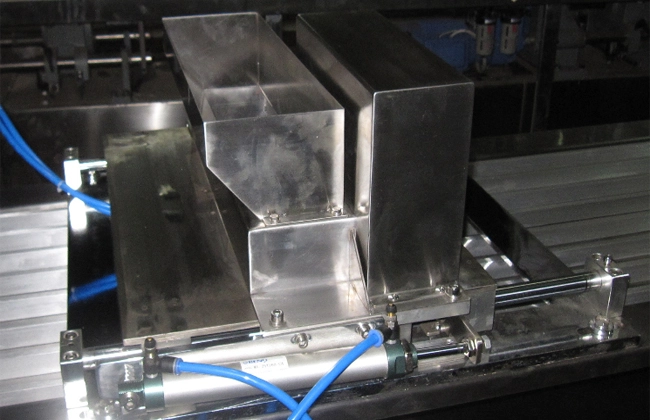

4. Can optional choose different feeders for different products.
5. The sealing cylinder will separate automatically when machine stop, it will not damage the product and extend machine life.
6. Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.
1.2.7 Notes:
·Plexiglas Cover can be added for option.

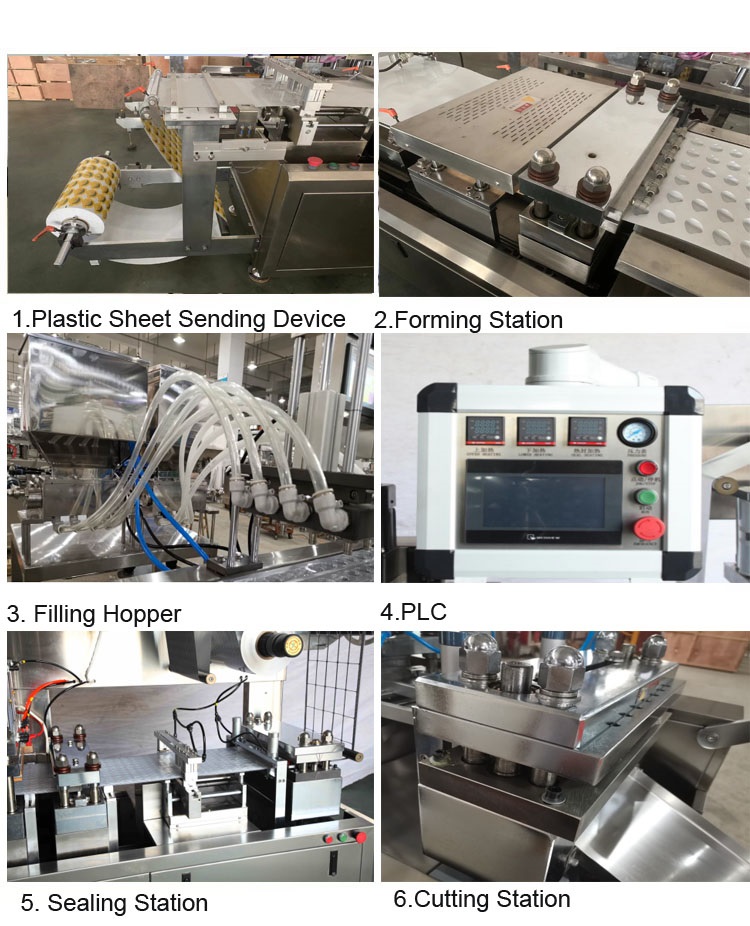

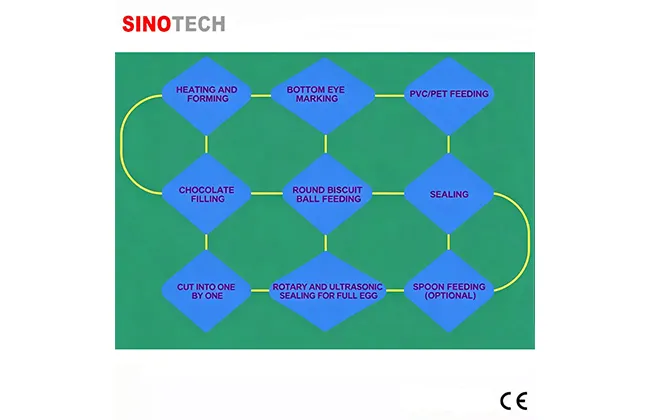

PVC/PET FEEDING
BOTTOM EYE MARKING
HEATING AND FORMING

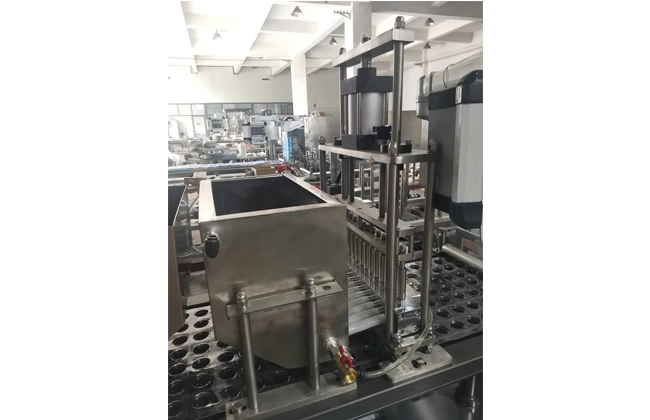

CHOCOLATE FILLING
ROUND BISCUIT BALL FEEDING (OR OTHER SHAPE)
SEALING
SPOON FEEDING (OPTIONAL)
ROTARY AND ULTRASONIC SEALING FOR FULL EGG
CUT INTO ONE BY ONE
Cutting Frequency (Times/min) | Al-pvc:10-25 |
Max. Forming Areas And Depth (mm) | 390×180×26 |
Travel Range (mm) | 40-180 (Can be lengthened to 180mm as user's requirements) |
Air Pressure (Mpa) | 0.4-0.6 |
Air Supply | ≥0.3m3/min |
Total Power | 380V/220V 50Hz 22kw |
Main Motor Power (kw) | 2.2 |
PVC/PET Sheet (mm) | 0.15-0.5×420 |
Laminated sealing Foil (mm) | 0.05-0.1×420 |
Mould Cooling | Tap Water Or Circulating Water, Water chiller |
Overall Dimensions (mm) | 6000×950×2000(L×W×H) |
Weight (kg) | 2000 |
