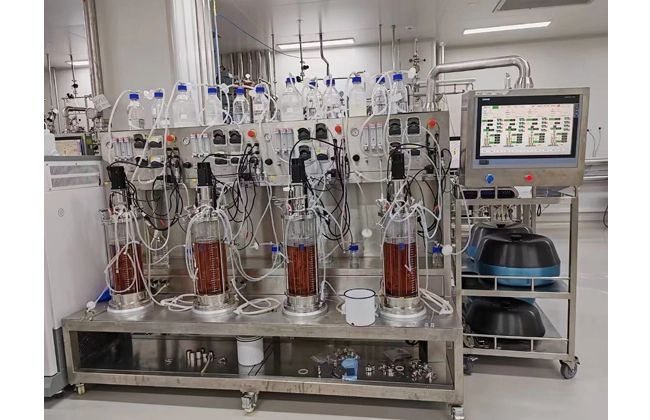

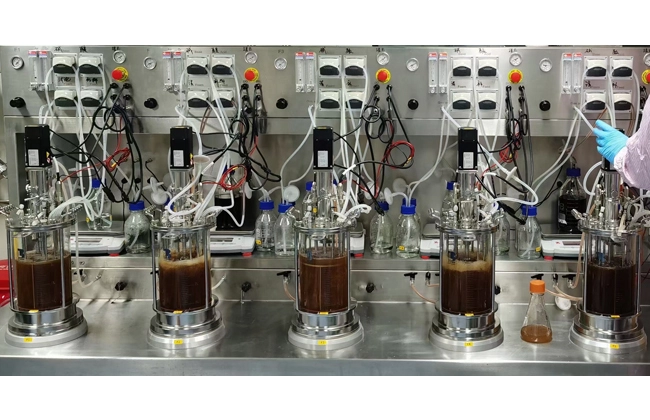

Parallel Glass Bioreactors

Glass Bioreactor Fermenter

(Customize)

0.5L

1:2/1:2.5

1L

1:2/1:2.5

3L

1:2/1:2.5

5L

1:2/1:2.5

10L

1:2/1:2.5

15L

1:2/1:2.5

Tank

Single glass vessel with stainless steel bottom. Lid made by stainless steel 316L with ports, condenser on the cover

Stirring system

Mechanical drive or Magnetic drive (bottom/top drive), 3 six-blade paddle and 1 foam breaker, each paddle height adjustable.Stir speed: 50~1000rpm/50-500rpm

Sterilization

Off-site sterilization (Autoclave)

Gas control

Control by rotor meter, air flow 2vvm.

Feeding

Automatically feeding by peristaltic pump

Anti-foam control

Automatically add antifoamer by peristaltic pump

Temperature control

Auto-control, electric heating range water source add 5℃ to 70℃

PH control

PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler

DO control

0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, DO coupling with agitation, oxygen.

Sampling

Manual sampling

Control parameters

10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions

Optional configuration

Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, etc.,
