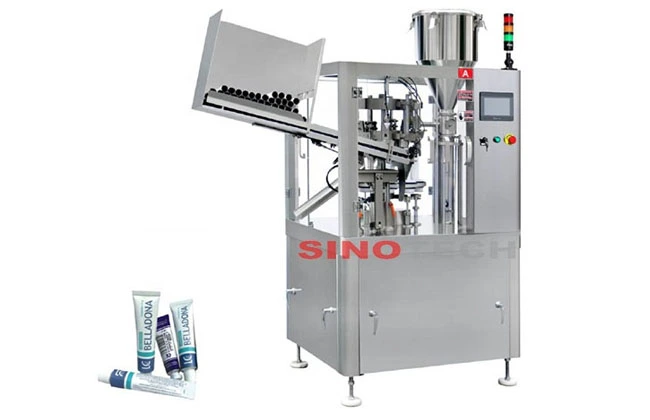

Fully Automatic Filling Sealing Machine for Plastic Toothpaste Tube Soft Cosmetic Cream

Power source

3PH  380V/220v  50Hz

Power

7Kw

Tube material

plastic tube、Composite tube、Aluminum tube、Lead tube

Tube diameter

Ф10-Ф60mm,Ф10-Ф40mm(aluminum tube)

Tube lenght

50-300mm(customizable)

Filling volume

5-500ml/tube(Adjustable)

Filling accuracy

GB/T10799-2007

Product capacity(Pc/min)

30-60

Air supply

0.55-0.65Mpa

Nitrogen supply(Alternative)

》0.15Mpa

Heat sealing power

3KW

Ultrasonic power(Alternative)

2KW

Chiller power

1.4KW

Overall dimension(mm)

2507*1040*1908(L*W*H)

Machine weight(KG)

1100KG

Working environment

Normal temperature and humidity

Noise

《70dba

Control system

Variable frequency stepless speed regulation, PLC control

Material

304/316 stainless steel is used in contact with the paste, and environmentally friendly materials are used in contact with the hose.
