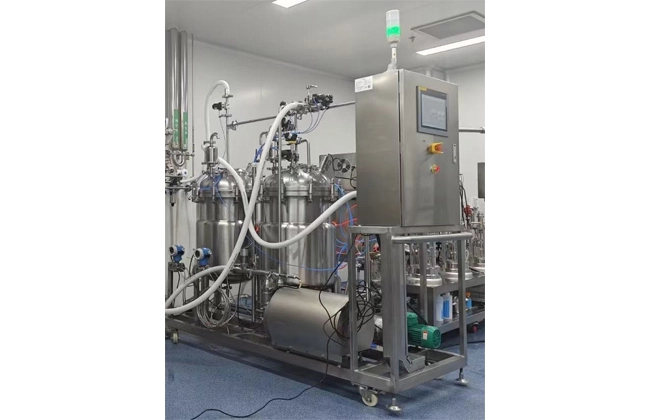

Fully Automatic CIP System (Acid and Alkali)

CIP System

50L

100L

150L

200L

300L

500L

1000L

2000L

5000L

Tank

Jacket tank, made by SS316 and SS304, tank design pressure 0.3Mpa, jacket design pressure 0.35Mpa, polishing 0.4-0.6um, ratio of diameter and height is 1:2.2-2.5

Stirring system

Mechanical drive on the top/bottom or Magnetic drive on the top, 3pcs height adjustable six-blade paddle,

Stir speed: 50~1000rpm/50-400rpm

Sterilization

Sterilize in place(SIP), auto control by program

Temperature control

Auto-control,  electric heating range: water source add 5℃ to 70℃

Weight system

Using le bottom fixation, thread concealed; Mettletoldo weighing sensor.

Control parameters

Stainelss steel bioreactor have 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, temperature, feeding, alarm,etc.)
