DPP140 Blister Packing Machine

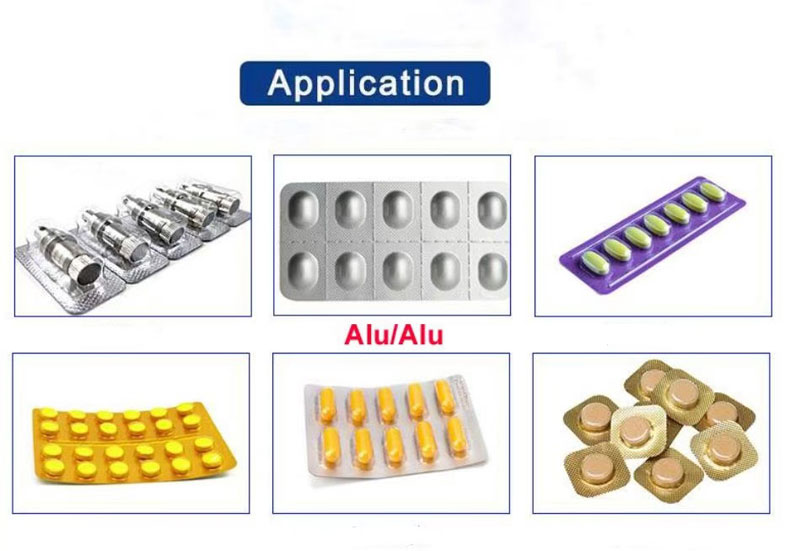

This machine is the latest and high automation product designed for middle and small sized pharmacy factory, healthcare factory and preparation-room of hospital, especially for those who need small batches product but many kinds. The machine is adopted with PLC, frequency converter and touch screen operation. It can automatically finish the processed of feeding, forming, heat-sealing, pressing, batch number printing, punching and so on. It is the ideal packing equipment with convenience operation, full purpose function. The product passed the provincial science and technology appraisal.It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-al, Al-plastic or paper-plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.


Advantages of DPP140 blister packing machine


1. Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.

2. Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.

3. With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.

4. Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.


Specifications of DPP140 blister packing machine



Cutting Frequency (Times/min)

6-50

Production Capacity (blisters/h)

3,000-3,600

Max. Forming Area And Depth (mm)

140×130×26 (Standard Depth 14mm)

Travel Range (mm)

40-140(Can be lengthened to 160mm according to user's requirements)

Standard Plate (mm)

80×57(Can be manufactured as user's requirements)

Air Pressure (Mpa)

0.4-0.6

Air Supply

≥0.2m3/min

Total Power

380V/220V    50Hz    3.6KW

Main Motor Power (KW)

0.75

PVC Hard Pieces (mm)

0.15-0.5×150

PTP Aluminum Foil (mm)

0.02-0.035×150

Dialysis Paper (mm)

50-100g×150

Mould Cooling

Tap Water Or Circulating Water

Overall Dimensions (mm)

2300×560×1410(L×W×H)

Weight (kg)

750




Component List


Item

Specification

Manufacture

Pcs

Speed Reducer and Main motor

MPAF37-Y0.75

-4P-43.05-M1

Shanghai Maite transmission machinery Co.,Ltd

1

Solenoid Valve

4V210-08 DC24V

Taiwan AIRTAC

2

Frequency Converter

VFD015M21A

Taiwan Delta Company

1

PLC

PLC  DVP24ES00R2

Taiwan Delta Company

1

Touch screen

MT506MV

Taiwan Delta Company

1

Cylinder

SDA32×5

Taiwan AIRTAC

3

Cylinder

ZQGT100×35-2

NingBo JingXing Pneumatic Components Co.,Ltd

2

Decompression oil-water separator

BFC—4000

Taiwan AIRTAC

1

Unstuck- heating appliance

ZL-0.8KW

Jiangsu AnTai Heat-Electric Factory

1

ZL-1.2KW

2

Temperature Controller

ATC30-ASR1

-K4

Zhejiang AIKS Electric Co,.Ltd

3

A.C Contactor

CJX2-2510

China Chint Group

1

Breaker

DZ47-60

China Chint Group

6

Emergency Switch

SGBLAR

Shanghai GangFu Appliance Co.Ltd

1

Proximity Switch

J6-D7NK-T2

Zhejiang baideli Sensor Factory

2

Mid-Relay

MY2NJ

OMRON

2
